MD PREPAID (CT Rated) Meter with Fiber-Base Meter Box
A complete metering solution that combines a reliable MD meter with a durable fiber-based meter box. Designed for safety, durability and efficient operation in both indoor and outdoor environments.
- MD metering
- CT rated
- Fiber meter box
- IP44
Product Overview
Reliable metering for modern utility needs
The MD Prepaid (CT Rated) Meter with Fiber-Based Meter Box is engineered to deliver accurate maximum demand measurement with long-lasting performance. The meter is housed in a high-quality fiber-reinforced enclosure that offers excellent strength, corrosion resistance and protection against harsh weather conditions.
The meter box features a smart dual-compartment design, with the meter in the upper section and the current transformer (CT) plus test terminal block (TTB) in the lower section. This setup improves safety, simplifies maintenance and ensures easy access for testing without disturbing the meter.
Advanced metering
Advanced MD measurement and reliable data
Durable enclosure
Fiber-reinforced, weather resistant and corrosion proof
Safe & efficient
Dual-compartment design for better maintenance and security
Key Features and Capabilities
MD (Maximum Demand) metering
Measures and records maximum demand for accurate billing and load management.
Prepaid operation
Supports prepaid billing mode with reliable metering and data storage.
Fiber-based meter box
Strong, weather-resistant and designed for long-term outdoor use.
Tamper protection
Detects tampering attempts and ensures system integrity.
CT rated
Compatible with current transformers for high current applications.
Test terminal block
Allows safe and easy access for testing and maintenance.
IP44 protection
Protected against dust and splashing water, suitable for outdoor installation.
Pole mounted
Designed for secure and stable pole installation.

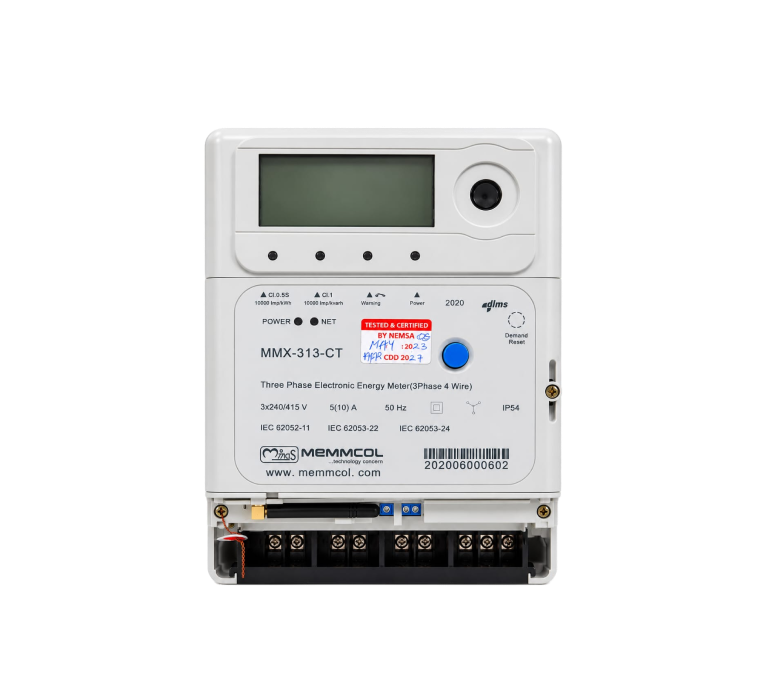

Meter display
Full MD meter view

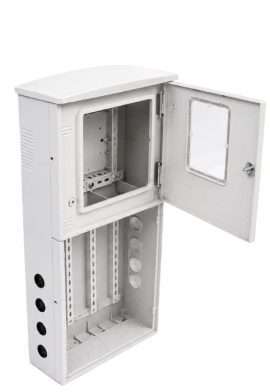

Fiber-based Meter Box
Opened meter box with no MD meter

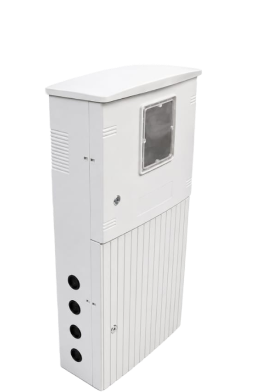

Fiber-based Meter Box
Closed meter box after installation

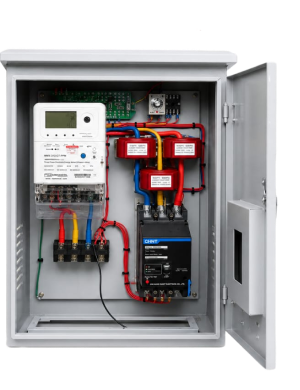

Installation view
In real-world deployment
Technical Specifications
- Meter type
- Three-phase, 4-wire
- Rated voltage
- 3 × 230/400V
- Current rating (CT)
- Three-5(100A CT rated)
- Frequency
- 50Hz
- Accuracy class
- Class 1.0
- Maximum demand
- Yes
- Tariff
- Prepaid (MD)
- Load control
- Dual relay (live & neutral)
- Remote reading
- Supported
- Communication module
- Optional (e.g. GPRS/4G)
- Protocols
- Modbus RTU / DLMS (as applicable)
- UIU compatibility
- Supported
- Tamper detection
- Yes
- Enclosure protection
- IP44
- Surge protection
- Yes
- Supply voltage
- 3 × 230/400V
- Display type
- LCD digital display
- Energy measurement
- Active energy (kWh)
- MD measurement
- Yes
- Data storage
- Non-volatile memory
- Real-time clock
- Yes
- Event logs
- Tamper & system events
- Records
- Load profile, demand, usage
- Meter interface
- RS485 (Modbus)
- Operating temp.
- -25°C to +70°C
- Storage temp.
- -40°C to +85°C
- Humidity
- 95% (non-condensing)
- Backup battery
- Optional (as required)
- Dimensions (H × W × D)
- ~480 × 250 × 180mm
- Weight
- 8–12kg (approx.)
- Mounting
- Pole mounted
- Enclosure material
- SMC (fiber reinforced)
